Images of photosynthetic complexes (see also: Gallery), updated images (2011)
Reference: http://photosynthesis.sbcs.qmul.ac.uk/nield/downloads.html
Cartoon model:
Structures of the protein complexes involved in the Z-scheme of photosynthesis
For larger versions: - please click.
Photosystem II (PSII): Reference: Nield, J. (1997) Ph.D. Thesis, University of London, UK.
A number of key PDB files ( http://www.rcsb.org ) should be on the list for those interested in photosystem reaction centres:
3ARC.pdb (Umena et al., 2011) for PSII,
1Q90.pdb (Stroebel et al., 2003) for Cytochrome b6f,
1JB0.pdb (Jordan et al. 2001) for PSI,
2o01.pdb (Amunts et al., 2007) for LHCI-PSI,
1Qo1.pdb for ATP synthase (Walker & co-workers).
Use the Swiss PDB viewer or PyMol to enjoy.
Reference: http://photosynthesis.sbcs.qmul.ac.uk/nield/downloads.html
Cartoon model:
Structures of the protein complexes involved in the Z-scheme of photosynthesis
For larger versions: - please click.
Photosystem II (PSII): Reference: Nield, J. (1997) Ph.D. Thesis, University of London, UK.
A number of key PDB files ( http://www.rcsb.org ) should be on the list for those interested in photosystem reaction centres:
3ARC.pdb (Umena et al., 2011) for PSII,
1Q90.pdb (Stroebel et al., 2003) for Cytochrome b6f,
1JB0.pdb (Jordan et al. 2001) for PSI,
2o01.pdb (Amunts et al., 2007) for LHCI-PSI,
1Qo1.pdb for ATP synthase (Walker & co-workers).
Use the Swiss PDB viewer or PyMol to enjoy.

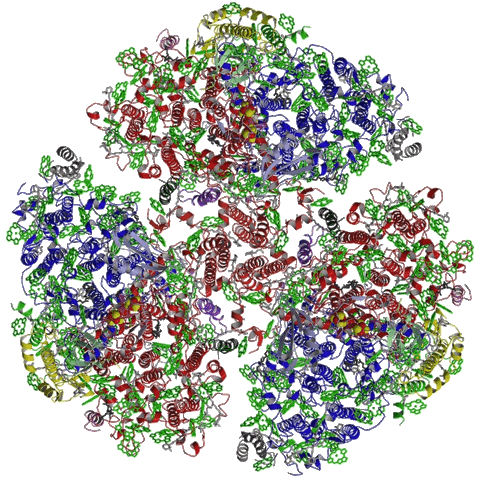

Here is a glimpse of the wonderful Photosystem I trimer (℅ Norbert Krauss) below ->
